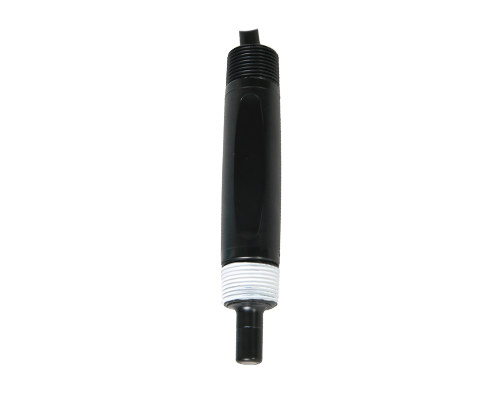

MD1912

Feature

No maintenance disposable dissolved oxygenw electrode, easy to use

Silicone, Teflon reinforced two oxygen permeable membrane, durable, Fast response, Water flow effect is small

Specification

Test Range：0~20.00ppm  Response time：98%<60秒（25℃时）

Residual current<0.5% of air current

Temperature Sensor：NTC22K Polarization voltage：-670±50mV

Air current：40~80nA(25℃时) Operating temperature：0~50℃  Pressure：0~0.4MPa

MD1900

Feature

wfluorescence principle , needn't to replace the membrane and electrolyte

Do not consume oxygen, no flow rate and agitationw requirements, high accuracy

Automatic detection feature ensures that the measuredw value

No flow requirements, can be measured in still water

Specification

Range：0~20mg/l(0~20ppm)0~200%SAT  Repeatability：+/-0.5%FS

T90:60s  Screw connection：G1  Cable：80m

Material: Noumenon: SUS316L stainless steel titanium,Phosphor layer

Cap: POM, fluorescent Layer: Silicon

CLN03MD1900

Feature

Installation and maintenance easy

Specification

wInstallation: by screws  Size: 120 * Φ65mm

PP-100A

Feature

The requirement to reduce the electrode line is only to be connected to the junction box and then another connection

Specification

length:1m/1.5m/2m  Collocation of circular junction box, electrode protection tube
