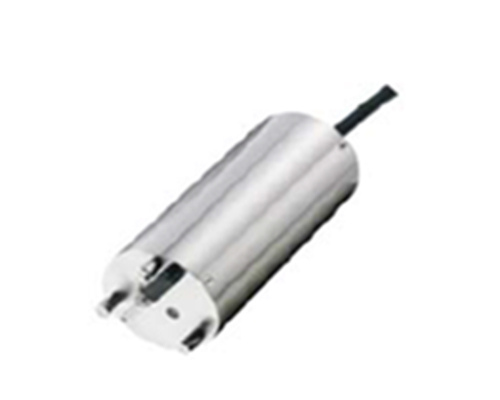

TC-100 /500/3000Japan TC-100 Turbidity Sensor

Feature

Design principles using 860nm infrared light principle,Cameo glass high-precision optical window,Built-in self-cleaning procedures to ensure measurement accuracy

Specification

Range：0~100/500/3000NTU0~1000mg/l  Diameter: 32mm*170mm

Cleaning interval: The preset is 10min  Accuracy: Of full scale ± 3%

Cleaning System: After the automatic cleaning electrode  Material: SUS 316L

TS-MxS-A

Feature

Regular automatic wiper cleaning

Design principles using 860nm infrared light principle,Cameo glass high-precision optical window,Built-in self-cleaning procedures to ensure measurement accuracy

Specification

Range：0~50g/l  Diameter: 48mm*133mm  Cleaning interval: The preset is 10min

Accuracy: Of full scale ± 3%  Cleaning System:After the automatic cleaning electrode

Material: SUS 316L

MTU100/500/5000

Feature

Optional cleaning brush with automatic cleaning, greatly reducing the amount of sensor maintenance

Specification

Range：5~100/500/5000NTU  Diameter:Φ32mm*170mm

Cleaning interval：1min/5min/15min/30min/1hr/4hr/12hr/1day/3day/7day

Accuracy: Less than the value of the reading of 5%

Cleaning System:Automatic cleaning Material：SUS316L,Coating Ti, Viton rubber,PVC(Ti)

MLSS-120 Sludge Concentration (MLSS) Sensor

Feature

Digital sensor with strong anti-interference ability, transmission distance

Specification

Range：0~120g/l(MLSS-120)0-20,000ppm(MSS-2000)  Diameter:32mm*170mm

Cleaning interval：1min/5min/15min/30min/1hr/4hr/12hr/1day/3day/7day

Accuracy: Less than the value of the reading of 5%

Cleaning System: Automatic cleaning

Material：SUS316L,Coating Ti,Viton rubber,PVC

MTU-100S/MTU-1000S

Feature

Operation and maintenance is simple and easy to install

Long life with light emitting diode as light source measurement

Specification

Rang:0...100.000NTC 0...1000.000NTC  Diameter:0.001...0.1/0.01...1

Principle: Turbidity method  light source: High brightness LED

Temperature:0-40℃  pressure: 70...135KPa  Water flow: 250...750 mL/min
